500m/Roll Photovoltaic TUV Solar Cable 6mm

  • 1
  • 2

Brand Name : Pntech

Model Number : H1Z2Z2-K 1x6mm2

Certification : TUV/CE/ISO9001

Place of Origin : China

MOQ : 200m

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 50000m per day

Delivery Time : 3-10days

Packaging Details : 200m/roll export carton

Product name : Solar XLPO Cable 6mm2

Characteristics : UV Resistant

Packing : 500m/roll

Conductor : Tinned copper

Struction : 84/0.285mm

Rate Voltage : 1KV AC 1500V DC

Color : Black and Red

Contact Now

H1Z2Z2-K/PV1-F Photovoltaic TUV 2 Pfg 1169/08.2007, 0.6/1kv solar XLPO cable 6mm2

Description:

Cable management for project reliability, safety and life.

Wire management is important because it minimizes maintenance, optimizes safety and thus enhances life of wire and system. Cables are one of the most critical aspect of solar plants and therefore requires a stringent management process. Wire management becomes necessary to avoid on site failures, which could result in high financial setbacks. Standard parameters for wire management like cable routing, cable bending, cable insulation etc., will help maintain uniformity throughout the manufacturing process, and standard quality cable will be delivered to solar PV plants.

Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.

Cross-Section: 1x6mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res

Specification:

TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70

Advantage:

· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved

Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.

Cables are designed to operate for a period of 20-25 years in solar power plants. The cables undergo high temperature, moisture, reptiles etc., which could harm cable and affect performance of cables and therefore the output of the plant. Ningbo Pntech New Energy Co. says, “Cable manufactures take in to consideration the stress and challenges that the cable undergoes during the product life cycle and develop cable products, maintaining highest quality standards. For cable manufactures, reliability and life span are the prime focus area. I would like to draw attention of all end users to choose product wisely so as to avoid hazardous situation and for achieving longer plant life to ensure high return on investment.”

Packing:

Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum

Delivery:

Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

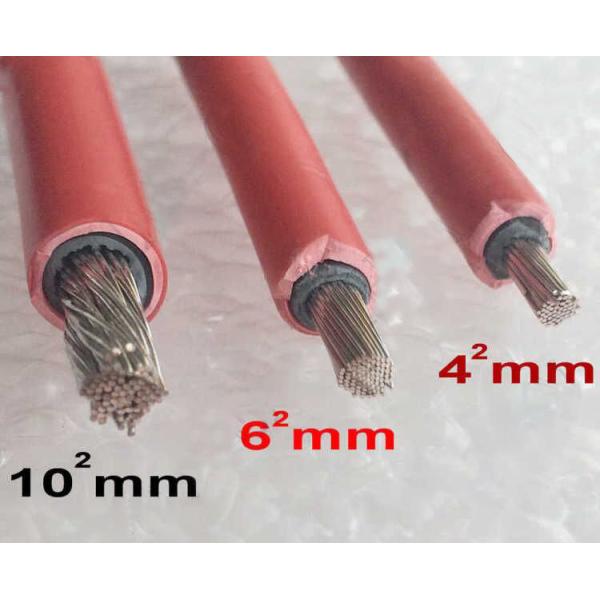

Photo of solar XLPO cable 6mm2

500m/Roll Photovoltaic TUV Solar Cable 6mm
